3000W 10inch QS Hub Motor Electric Moped Conversion kits

Model No.︰QS hub motor
Brand Name︰QS hub motor
Country of Origin︰China
Unit Price︰US $ 489 / set
Minimum Order︰1 set
Share on:

 Total 14 Related Items
Prev1011121314

Product Description

205Model 3000W 10inch V3 Type Hub Motor with Kelly Sine Wave Controller, Disc brake with Twist throttle

Please note that you have to make Idenfitication for the controller to the motor firstly according to the Controller Manual!!

Speed choice:

High torque type: 72V-60kmph,60V-50kmph, 48V-40kmph

Balance type:       72V-80kmph, 60V-67kmph, 48V-54kmph

High speed type:  72V-100kmph,60V-84kmph,48V-67kmph





The kits included as listed,

1. QS205 10inch 3000W Hub Motor (50H) V3 Type

2. Kelly Sine Wave Controller KLS7230S with Programmable cable

3. Rear Disc brake System

4. Twist Throttle





   10inch 3000w + KLS7230S - xp motor





1. QS205 3000W 10inch Hub Motor 50H V3 Type



 initpintu_10-1















2. Motor Controller (Sine wave Controller)



Kelly Sinudoidal Controller KLS7230S For Electric scooter or Electric motorcycle

Can be configurated by bluetooth adaptor or USB Cable via Computer or smart phone



KlS7230





General Specifications:



•Frequency of Operation: 20kHz.

•Standby Battery Current: < 0.5mA.

•5V or 12V Sensor Supply Current: 40mA.

•Controller supply voltage range: PWR, 18V to 90V for controllers rated equal or lower than 72V.

•Supply Current, PWR, 30mA Typical.

•Configurable battery voltage range, B+. Max operating range: 18V to 1.25*Nominal Voltage.

•Standard Throttle Input: 0-5 Volts(3-wire resistive pot), 1-4 Volts(hall active throttle).

•Throttle Input: 0-5 Volts. Can use 3-wire pot to produce 0-5V signal.

•Main Contactor Coil Driver<2A.

•Full Power Operating Temperature Range: 0℃ to 70℃(MOSFET temperature).

•Operating Temper ature Range: -40℃to 100℃ (MOSFET temperature).

•Motor Current Limit, 20 seconds boost: 300A ,depending on the model.

•Motor Current Limit, continuous: 120A ,depending on the model.

•Max Battery Current :Configurable.

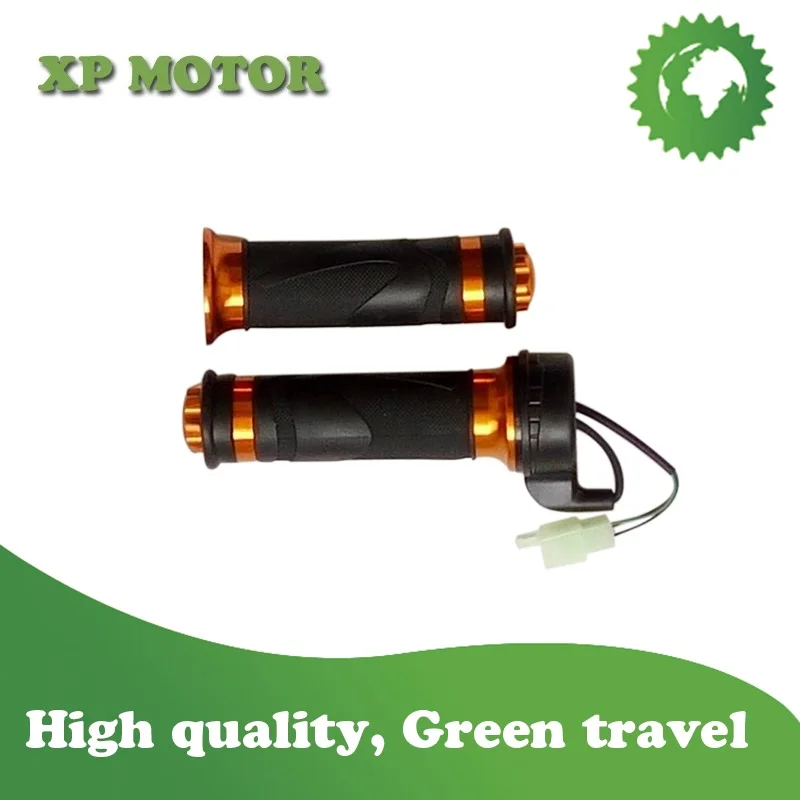

3. Twist  Throttle



6



Hall 0-5V Twist Grip for normal electric bike or electric scooter\


Wires definition:



Wires instuction: RED to +5V

BLACK to GND

WHITE to SIGNAL WIRE

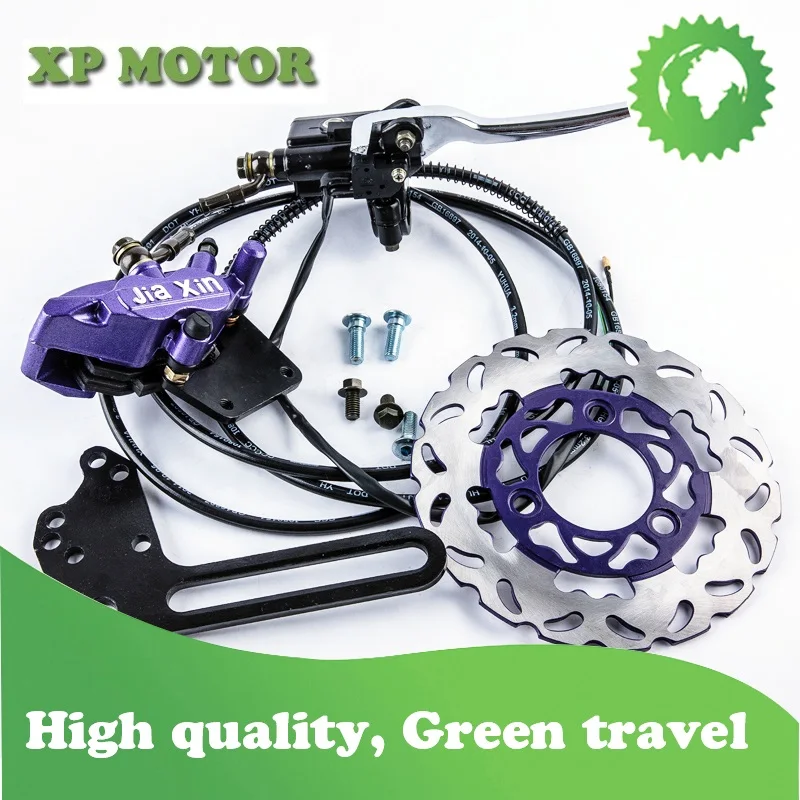

 4. Disc brake system



     Disc dia. 220mm

     With caliper,oil pipe and brake handle

1

Payment Terms︰TT,PAYPAL
