2000W 10inch E-Scooter Hub Motor Conversion kits

Model No.︰QS hub motor
Brand Name︰QS hub motor
Country of Origin︰China
Unit Price︰US $ 449 / set
Minimum Order︰1 set
Share on:

 Total 13 Related Items
Prev910111213Next

Product Description

205Model 2000W 10inch V3 Type Hub Motor with Kelly Sine Wave Controller, Disc brake with Twist throttle

Please note that you have to make Idenfitication for the controller to the motor firstly according to the Controller Manual!!

Speed choice:

High torque type: 72V-65kmph,60V-54kmph, 48V-43kmph

Balance type:       72V-74kmph, 60V-61kmph, 48V-48kmph

High speed type:  72V-89kmph,60V-74kmph,48V-59kmph



The kits included as listed,

1. QS205 10inch 2000W Hub Motor (45H) V3 Type

2. Kelly Sine Wave Controller KLS7230S with Programmable cable

3. Rear Disc brake System

4. Twist Throttle





1. QS205 2000W Hub Motor(45H) V3 Type



 125

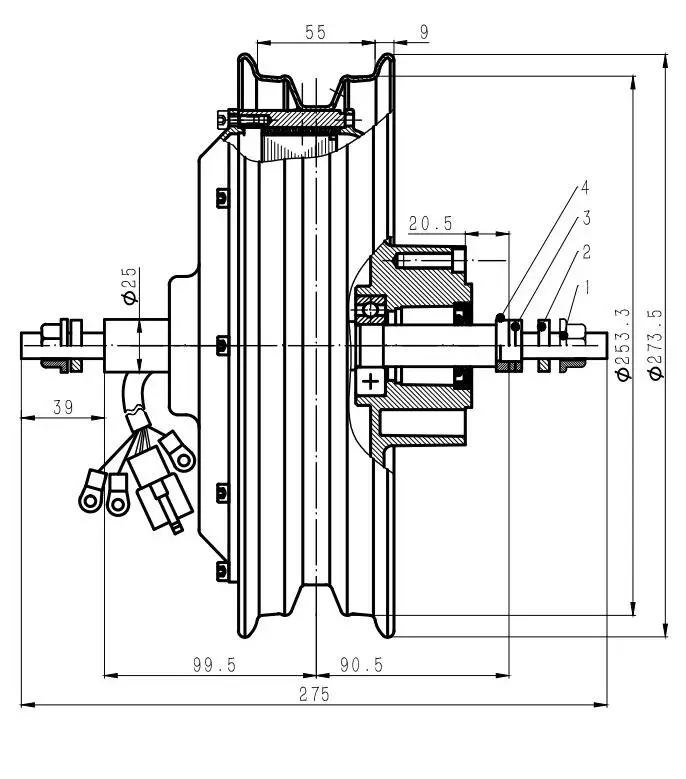

10inch 2.15x10 dibujo

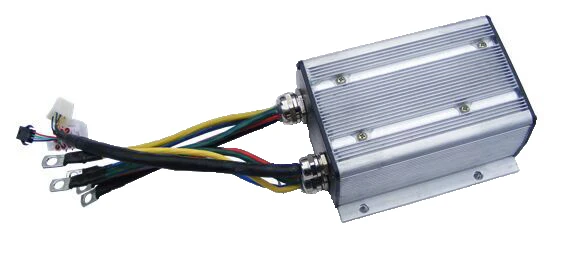

2. Motor Controller (Sine wave Controller)



Kelly Sinudoidal Controller KLS7230S For Electric scooter or Electric motorcycle

Can be configurated by bluetooth adaptor or USB Cable via Computer or smart phone



KlS7230





General Specifications:



•Frequency of Operation: 20kHz.

•Standby Battery Current: < 0.5mA.

•5V or 12V Sensor Supply Current: 40mA.

•Controller supply voltage range: PWR, 18V to 90V for controllers rated equal or lower than 72V.

•Supply Current, PWR, 30mA Typical.

•Configurable battery voltage range, B+. Max operating range: 18V to 1.25*Nominal Voltage.

•Standard Throttle Input: 0-5 Volts(3-wire resistive pot), 1-4 Volts(hall active throttle).

•Throttle Input: 0-5 Volts. Can use 3-wire pot to produce 0-5V signal.

•Main Contactor Coil Driver<2A.

•Full Power Operating Temperature Range: 0℃ to 70℃(MOSFET temperature).

•Operating Temper ature Range: -40℃to 100℃ (MOSFET temperature).

•Motor Current Limit, 20 seconds boost: 300A ,depending on the model.

•Motor Current Limit, continuous: 120A ,depending on the model.

•Max Battery Current :Configurable.







QQ20170920163009













3. Twist  Throttle



6



Hall 0-5V Twist Grip for normal electric bike or electric scooter

Wires instuction: RED to +5V

BLACK to GND

WHITE to SIGNAL WIRE

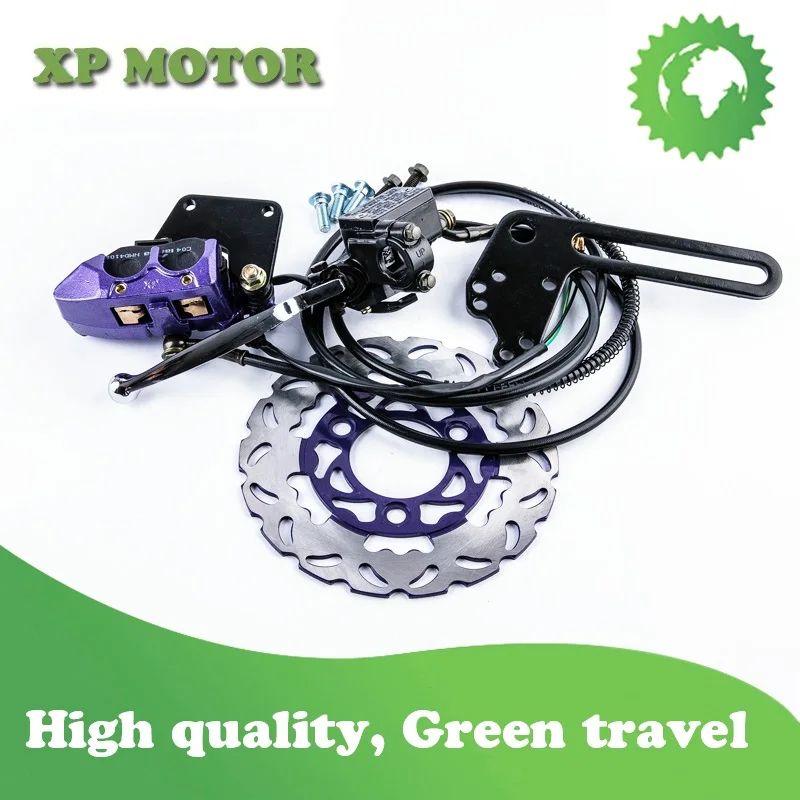

 4. Disc brake system



Disc dia. 180mm or 220mm for optional

Disc Thickness: 3mm

With caliper,oil pipe and brake handle

The color will be random delivery!

 2



Payment Terms︰TT,PAYPAL
