500W Geared E-bike Spoke Motor BPM Motor

  • 500W Geared E-bike Spoke Motor BPM Motor
  • 500W Geared E-bike Spoke Motor BPM Motor
  • 500W Geared E-bike Spoke Motor BPM Motor
  • 500W Geared E-bike Spoke Motor BPM Motor
Model No.︰QS hub motor
Brand Name︰QS hub motor
Country of Origin︰China
Unit Price︰US $ 110 / pc
Minimum Order︰1 pc
Share on:

 Total 10 Related Items
Prev45678Next

Product Description

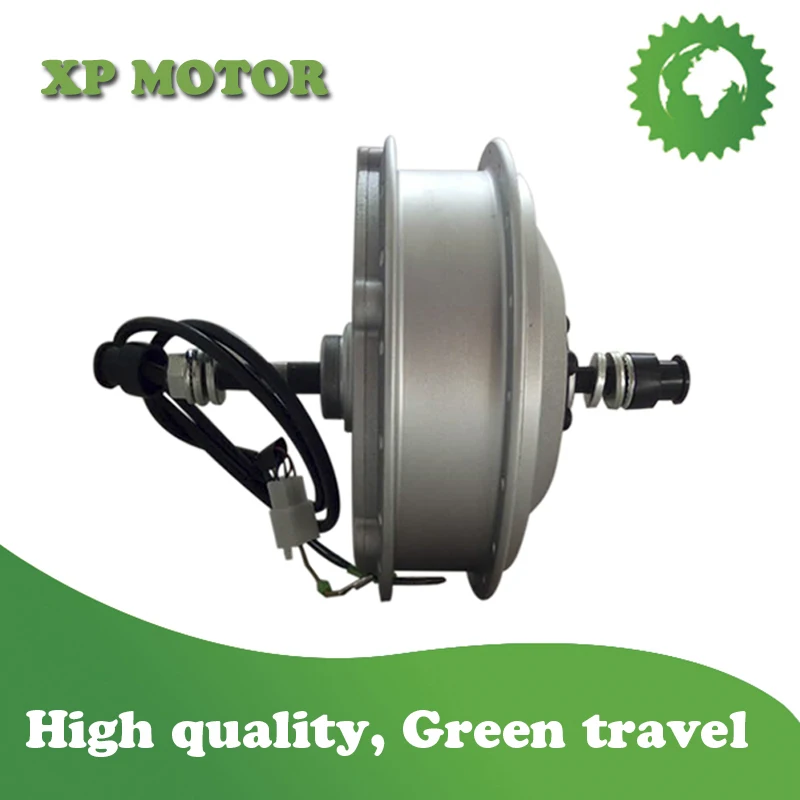

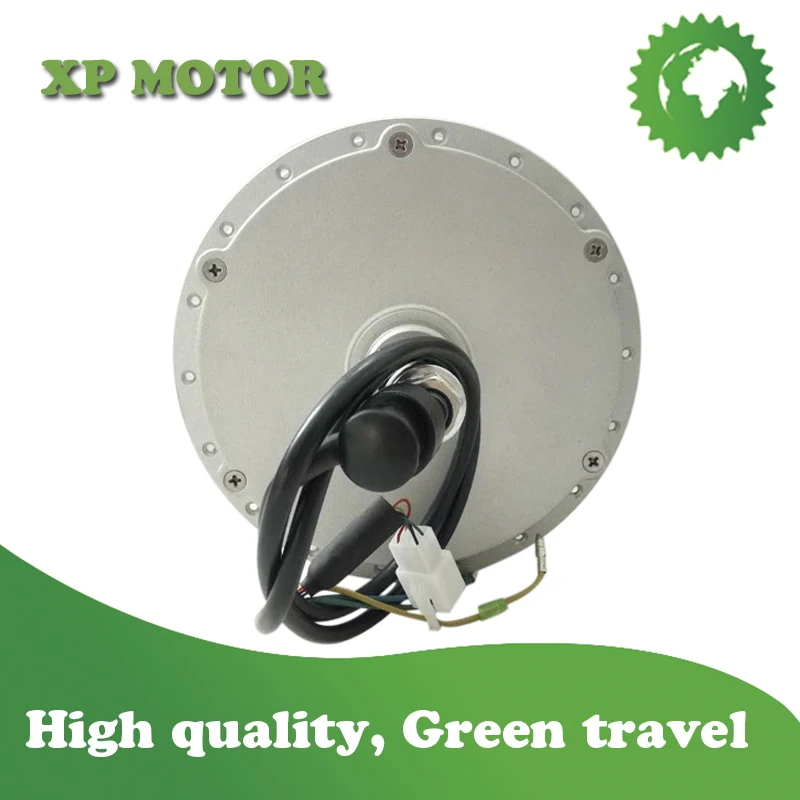

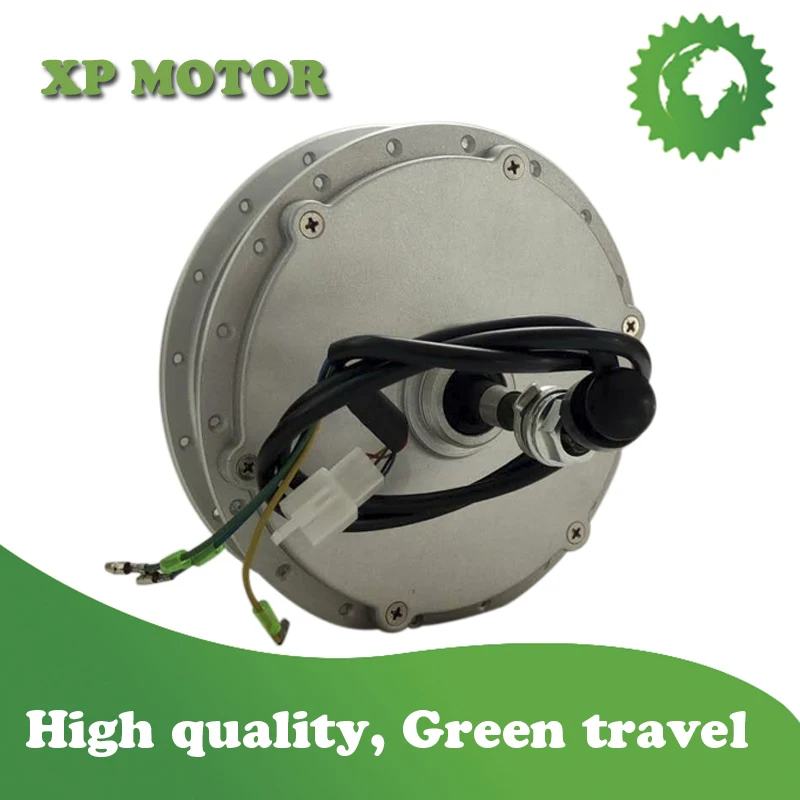

500W Geared Spoke Hub Motor For Electric Bicycle



500W Geard Spoke Hub Motor specially designed for normal Electric bicycle conversion with very higher torque!!



Motor Specification:



1.    Motor Type: BLDC Hub Motor with Permanent Magnet

2.    Motor design: Double axle out with Gear inside

3.    Spoke hole : 3.4mm x 36pcs

4.    Matching Rim :16inch-26inch

5.    Rated Power: 500W

6.    Peak Power : 800W

7.    Rated Voltage: 36V/48V(Can be optional)

8.    Speed: 29km/h

9.    Max No-load RPM: 500RPM

10.  Max Torque: 35N.M

11.  Max Efficiency: 88%

12.  Continious current:16A

13.  Max current:30A

14.  Brake type: Disc brake

15.  Rear Fork width for installation : 135mm

16.  Available for 7-speed Freewheel

17.  Cross Section of Phase wire : 3 mm2

18.  Hall sensor phasing angle : 120 degree

19.  Max. Working Temperature: 70 degree, 120 degree

20.  Waterproof Grade: IP54

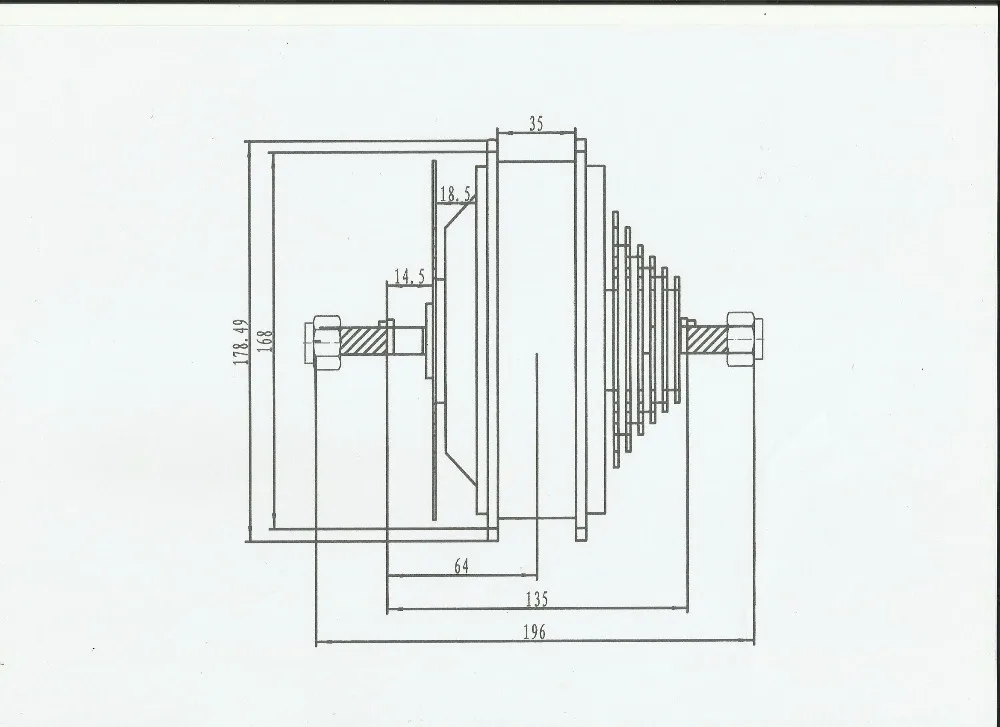

 gear e-bike 500w qs1gear e-bike 500w qs2gear e-bike 500w qs3gear e-bike 500w qs4 042

Payment Terms︰TT,PAYPAL
