NEW 260Model 5000W 45H Single Shaft Electric Car Hub Motor V3 Type

Hub Motor
  • Hub Motor
  • Electric car hub motor
  • 5000W 45H Single Shaft
  • 5000w hub motor
  • car hub motor
Model No.︰260 5000W
Brand Name︰Electric Car Hub Motor
Country of Origin︰China
Unit Price︰US $ 453 / pc
Minimum Order︰1 pc
Share on:

 Total 22 Related Items
Prev12345Next

Product Description

260 Single Shaft Electric Car Hub Motor(45H) 5000W V3 Type



260Model Electric Car Hub Motor is NEW developed for Electric Car or Electric Motorbike, the rated power can be made at 1500W,2000W,3000W or 5000W.

Version 1 and Version 3 can be optional!



Motor Specification:



  • Motor Type: BLDC Hub Motor with Permanent Magnets
  • Motor design: 260 Single shaft out
  • Bolts Pattern: 4 x 100MM
  • Magnet: 45H Curved Magnets with SH(340Degree) Lever
  • Pole Pairs: 16 Pairs
  • Rated Power: 5000W
  • Peak Power: 10000W
  • Rated Voltage: 72V( 60V-96V Can be optional)
  • Max No-load RPM: 1320RPM
  • Max Torque: 230N.M
  • Max Efficiency: 90%
  • Brake type: Disc brake
  • Winding Core material: Aluimium
  • Cross Section of Phase wire: 16mm2
  • Hall sensor phasing angle: 120 degree
  • Temperature Sensor: Optional
  • Working Temperature: 70 degree, Peak 120 degree
  • Waterproof Grade: IP54
  • W./ G..W. : 18kgs / 20kgs
  • Package Size: 44*43*41C



Payment Terms︰PAYPAL or TT

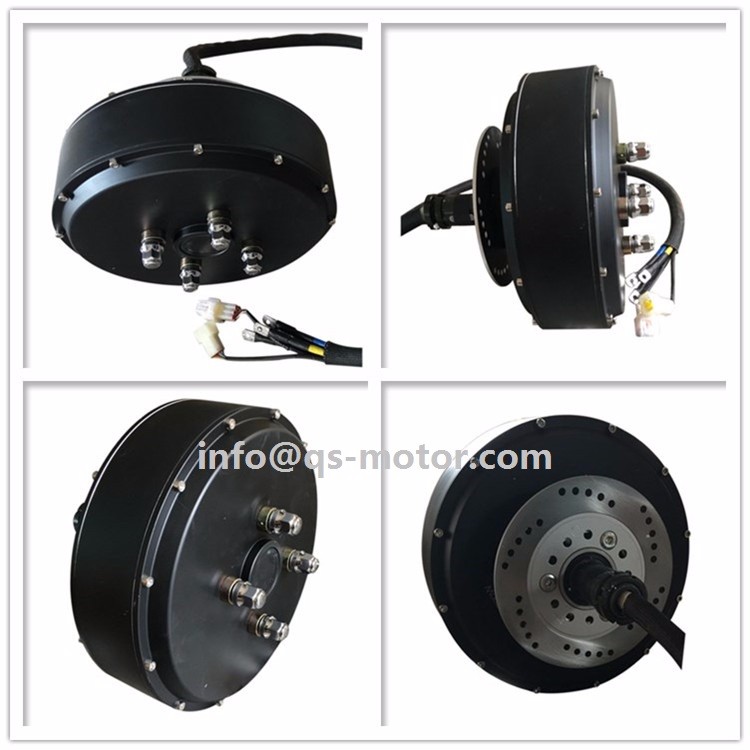

Product Image

Hub Motor
Hub Motor

Electric car hub motor
Electric car hub motor

5000W 45H Single Shaft
5000W 45H Single Shaft

5000w hub motor
5000w hub motor

car hub motor
car hub motor
