8000W 72V 16inch Electric motorcycle Motor Conversion Kits

Model No.︰-
Brand Name︰QS MOTOR
Country of Origin︰China
Unit Price︰US $ 889 / pc
Minimum Order︰1 pc
Share on:

 Total 14 Related Items
Prev7891011Next

Product Description

16inch 8000W 72V Electric Motorcycle Conversion Kits



The parts list as follows,



1pc x QS 16inch 8000W V3 Hub Motor

​1set x 220mm Disc brake system with caliper

1pc x Twist Hall Throttle

1pc x Kelly Controller KLS7275H

1pc x Kelly Controller wiring

1pc x Kelly Controller USB cable



16inch 8000w + KLS7275H - XPMOTOR







16inch 273 E-Scooter In-Wheel Hub Motor(50H) 8000W V3 Type



16inch Hub Motor specially designed for electric motorcycle, the rated power can be made 2kw,3kw,4kw,5kw,6kw,7kw or 8kw. Max speed can be customized from 30-120KMPH.



Motor Specification:



1.    Motor Type: BLDC Hub Motor with Permanent Magnets

2.    Motor design: Double axle out with 17inch Aluminium rim

3.    Rim size:3.0x16

4.    Matching Tire: 110/90-16

5.    Magnet Height: 50MM

6.    Number of Pole Pairs: 16 pairs(32pcs Curved Magnets)

7.    Rated Power: 8000W V3

8.    Max Power:11250W(Peak 16000W)

9.    Rated Voltage: 72V( 72-144V Can be optional)

10.  Speed: 115km/h (30-120km/h can be customized)

11.  Max No-load RPM:1160RPM

12.  Max Torque: 200N.M

13.  Max Efficiency: 90%

14.  Continious current:130A

15.  Max current:190A ,Peak 260A

16.  Brake type: Disc brake

17.  Rear Fork width for installation: 200mm

18.  Winding Core material: Aluminium

19.  Cross Section of Phase wire: 16 mm2

20.  Hall sensor phasing angle: 120 degree

21.  Temperature Sensor: Optional

22.  Max. Working Temperature: 70 degree, Peak 120 degree

23.  Waterproof Grade: IP54

24.  Net Weight: 25KGS

25.  Package Size: 58*58*40CM





Motor Pictures:

Please choose what side cover design you need,or it will be randam delivery!



initpintu_16

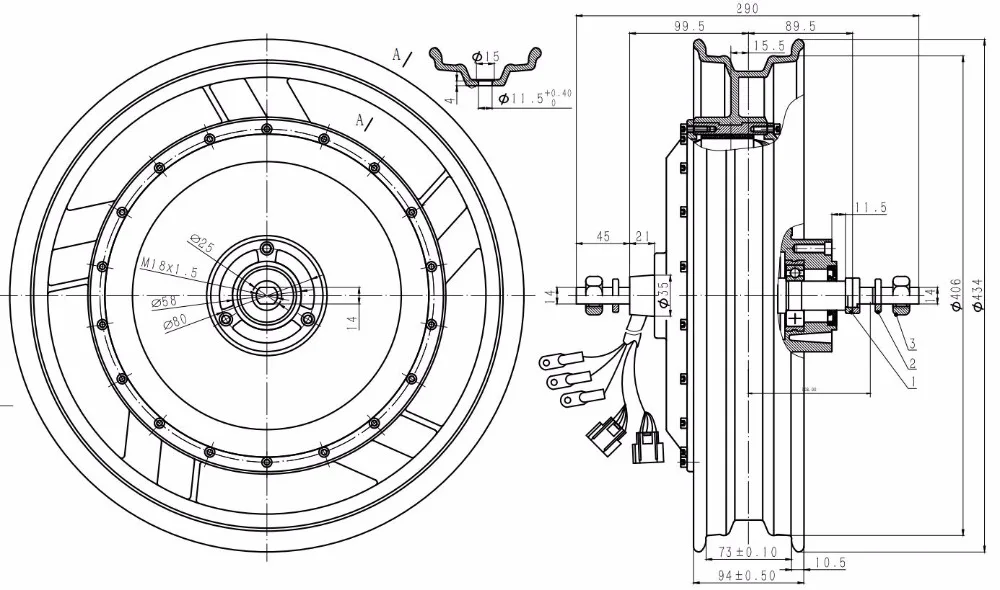

Motor drawing:



 16inch 3.0x16_







Motor cable:

motor wires









Kelly Sinusoidal Wave Controller KLS7275H



SINUSOIDAL WAVE BLDC MOTOR CONTROLL KLS7275H,24V-72V,500A,SEALED IP67

Suitable Motor power: 6000W-8000W

Battery voltage range: 18V-90V

Water proof level: IP67

QQ20170527131942







Twist Hall throttle for electric Scooter or Electric bike

2 (1)



Inner Hole diameter  2.3mm

Throttle bar length 15CM



Wires definition

Thin Red wire +5V

Black wire  GND

White wire  Hall Signal



The throttle can be fitted to any electric scooter or electric motorcycle.

The Throttle color will be randam delivery

Payment Terms︰Paypal / TT
