QS 4000W 72V 10inch Wheel Hub Motor with Kelly Controller and throttle 100kph

QS 4000W 72V 10inch In-Wheel Hub Motor with Kelly Controller KEB72601 and throttle Speed 100kph
Model No.︰10inch 4000W
Brand Name︰QS Hub Motor
Country of Origin︰China
Unit Price︰US $ 499 / SET
Minimum Order︰1 SET
Share on:

 Total 13 Related Items
Prev12345Next

Product Description

QS205 4000W 10inch Hub Motor with Controller and Throttle for Electric scooter Conversion Kits



The conversion kits included the part as follows,



1nos. QS205 10inch 4000W 72V Hub Motor V2 Type

1nos. Kelly Programmable Controller KEB72601x

1nos. Twist throttle



If you need any more requirement, please feel freely to contact us!

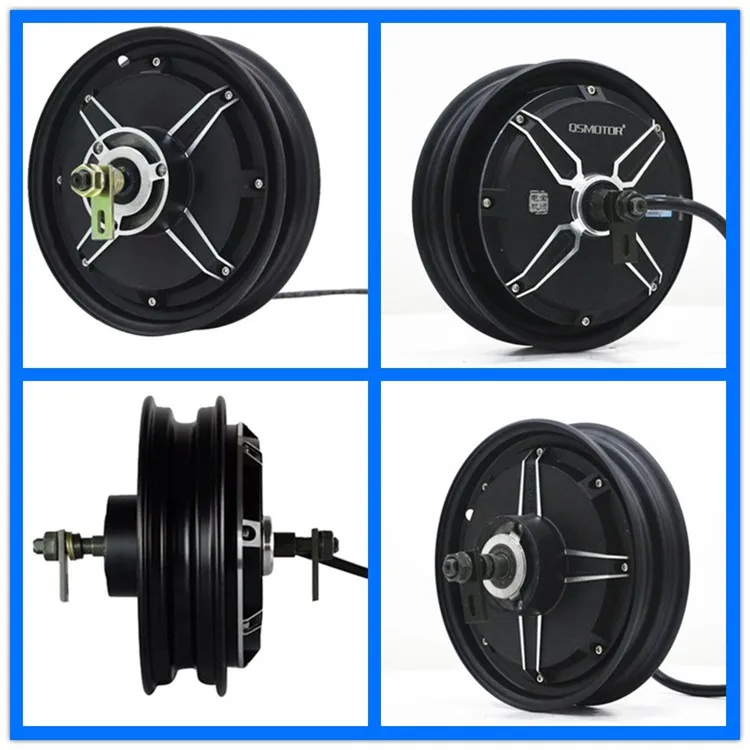

1. QS205 10inch 4000W Brushless Hub Motor

Motor Specification:



1.    Motor Type: BLDC Hub Motor with Permanent Manget

2.    Motor design: Double axle out with 10inch rim

3.    Rim size:2.15-10

4.    Matached Tire: 3.0-10, 3.5-10

5.    Magnet Height: 50MM

6.    Pole Pairs: 23 paris

7.    Rated Power: 4000W

8.    Peak Power: 5100W

9.    Rated Voltage: 72V

10.  Speed: 90-100km/h

11.  Max No-load RPM: 1400RPM

12.  Max Torque: 150N.M

13.  Max Efficiency: 88%

14.  Continious current:61A

15.  Max current:90A

16.  Brake type: Disc brake or Brum brake(Optional)

17.  Rear Fock width for installation: 200mm

18.  Winding Core material: Aluminium

19.  Cross Section of Phase wire: 10 mm2

20.  Hall sensor phasing angle: 120 degree

21.  Temperature Sensor: Optional

22.  Max. Working Temperature: 70 degree, Peak 120 degree

23.  Waterproof Grade: IP54

24.  Color: Black or Silver

25.  N.W./ G..W. : 14kgs / 15kgs

26.  Package Size: 34*34*33CM







2. Kelly Programmable Controller KEB72601x with Braking Regenerative function




3. Twist  Throttle

Hall 0-5V Twist Grip for normal electric bike or electric scooter

Wires instuction: RED to +5V   BLACK to GND   WHITE to SIGNAL WIRE





Payment Terms︰Paypal or T/T
Product Image

QS 4000W 72V 10inch In-Wheel Hub Motor with Kelly Controller KEB72601 and throttle Speed 100kph
QS 4000W 72V 10inch In-Wheel Hub Motor with Kelly Controller KEB72601 and throttle Speed 100kph
