QS 260 12inch 5000W 45H V3 Hub Motor For Electric Motorcycle Conversion Kits

Model No.︰-
Brand Name︰-
Country of Origin︰China
Unit Price︰US $ 648 / SET
Minimum Order︰1 SET
Share on:

 Total 13 Related Items
Prev12345Next

Product Description

QS 260 12inch 5000W 45H V3 Hub Motor For Electric Motorcycle scooter Conversion Kits with max. Speed 100kph

The conversion kits included the part as follows,



1nos. QS260 12inch 5000W Hub Motor V3 Type

1nos. Kelly Sine Wave Controller KLS7275H

1nos. Disc brake System

1nos. Twist throttle



If you need any more requirement, please feel freely to contact us!





1. QS 260 12inch E-Scooter Hub Motor(45H) 5000W V3 Type



Motor Specification:



1.    Motor Type: BLDC Hub Motor with Permanent Magnets



2.   Motor design: Double axle out with 12inch rim

3.    Rim size:3.5x12

4.    Matching Tire: 120/70-12

5.    Magnet Height: 45MM

6.    Pole Pairs: 16 pairs

7.    Rated Power: 5000W

8.    Peak Power: 10000W

9.    Rated Voltage: 72V( 60V-96V Can be optional)

10.  Speed: 85km/h (30-100km/h can be customized)

11.  Max No-load RPM: 1320RPM

12.  Max Torque: 230N.M

13.  Max Efficiency: 89%

14.  Continious current:77A at 72V

15.  Max current:100A at 72V

16.  Brake type: Disc brake

17.  Rear Fork width for installation: 200mm

18.  Winding Core material: Aluimium

19.  Cross Section of Phase wire: 16mm2

20.  Hall sensor phasing angle: 120 degree

21.  Temperature Sensor: Optional

22.  Max. Working Temperature: 70 degree, Peak 120 degree

23.  Waterproof Grade: IP54

24.  Color: Black

25.  N.W./ G..W. : 17kgs / 18kgs

26.  Package Size: 44*43*34CM







2.  SINUSOIDAL WAVE BLDC MOTOR CONTROLL KLS7275H,24V-72V,500A,SEALED IP67

The bluetooth Converter for the controller is free available if you need!

Suitable Motor power: 5000W-8000W

Battery voltage range: 18V-90V

Water proof level: IP67



kls7275H





QQ20170527131942

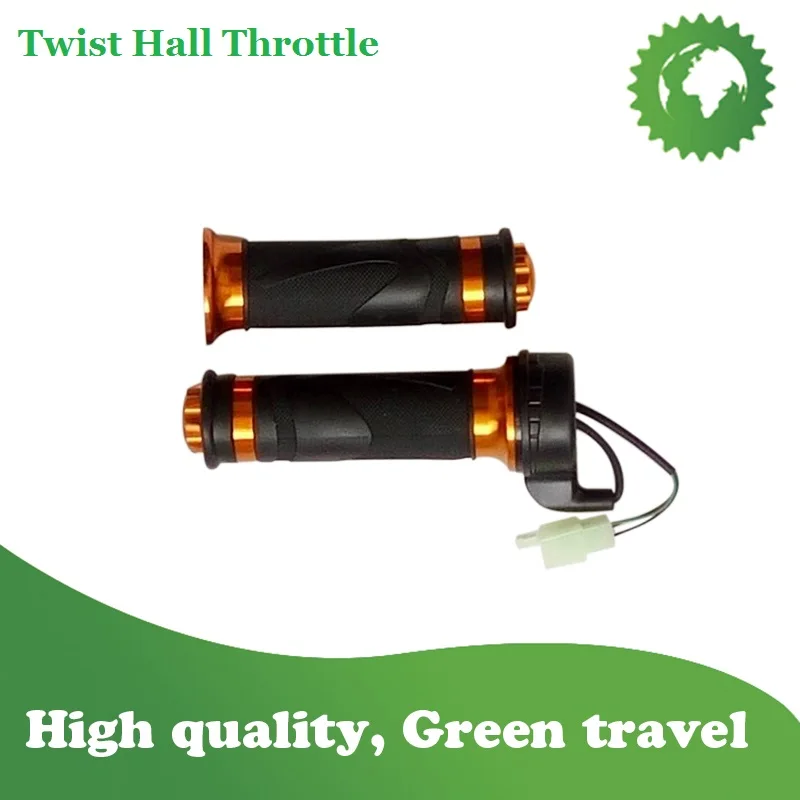

3. Twist Hall Throttle



2 (1)



Hall 0-5V Twist Grip for normal electric bike or electric scooter

Wires instuction: RED to +5V

BLACK to GND

WHITE to SIGNAL WIRE




4. Disc Rrake System





This is complete Disc brake system for Electric scooter or Electric motorcycle with rear Wheel Hub Motor.



The system including the Brake disc, Brake handle, Caliper and Oil pipe and cables.

The color of the caliper will be delivery in random,sometimes Purple or Orange!



Some details of the disc brake as follows,



Disc Dia.: 180MM

Disc thickness: 3MM

Oil pipe length:2.2M

Oil pipe Dia.: 7MM

Electric wire Length:40CM



e-scooter disc brake
