2WD 3000W Hub Motor Electric Car Conversion Kits

Model No.︰QS205
Brand Name︰-
Country of Origin︰China
Unit Price︰US $ 1270 / pc
Minimum Order︰1 pc
Share on:

 Total 13 Related Items
12345Next

Product Description

QS 205 72V 6000W 90KMH Small Electric Car Hub Motor Conversion Kits, 2 x 3000w Single Shaft Car Hub Motor and 2 Kelly Controller



The parts list as follows,



2 pcs x 205 3000W 50H V3 E-Car Hub Motor
2 pcs x KLS7230H Controller
1 pcs x Throttle Pedal
1 pc  x  Speedometer
1 set x 1 tow 2 Hydraulic Disc brake system





1. QS Motor 205 Model 3000W 72V 50H Single Shaft Car Hub Motor V3 Type

QS 205 72V 6000W 90KMH Small Electric Car Hub Motor Conversion Kits, 2 x 3000w Single Shaft Car Hub Motor and 2 Kelly Controller

205 Single Shaft Car Hub Motor specially designed for Electric tricycle or 4-wheel electric vehicles, the rated power can be made 1500W,2000W OR 3000W for options.



Motor Specification:

1. Motor Type: BLDC Hub Motor with Permanent Magnet
2. Motor design: Single axle out without rim
3. PCD for rim installation: 4 x100mm
4. CB:60MM
5. Magnet Height: 50MM
6. No. of Pole Pairs: 16 pairs
7. Rated Power: 3000W V3
8. Peak Power: 5000W
9. Rated Voltage: 72V( 48-96V Can be optional)
10. Speed: 80km/h (30-100km/h can be customized)
11. Max No-load RPM: 1100RPM
12. Max Torque: 180N.M
13. Max Efficiency: 90%
14. Continious current:45A
15. Max current:80A (Peak 100A in short time)
16. Brake type: Disc brake
17. Winding Core material: Aluminium
18. Cross Section of Phase wire: 10 mm2
19. Hall sensor phasing angle: 120 degree
20. Temperature Sensor: Optional
21. Max. Working Temperature: 70 degree, Peak 120 degree
22. Waterproof Grade: IP54
23. Color: Black or Silver
24. N.W./ G..W. : 15kgs / 16kgs
25. Package Size: 34*34*33CM



QS 205 72V 6000W 90KMH Small Electric Car Hub Motor Conversion Kits, 2 x 3000w Single Shaft Car Hub Motor and 2 Kelly Controller

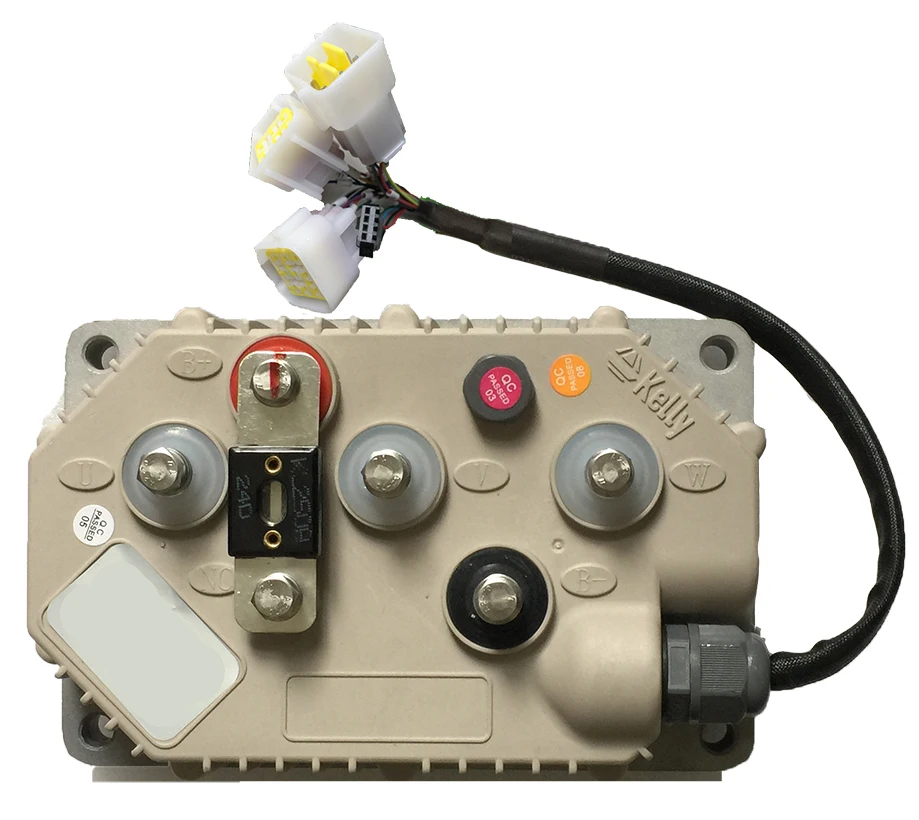

2. Programmable Sine Wave Controller Kelly KLS7230H with Brake Regenerative Function

100A continuous current, 300A phase current.
The size is 194mm*126mm*86.8mm
Net weight: 1.82kg
It's no problem to be used in max.speed 80km/h car
Package: Carton
Including: 1 controller+1 Z-TEK USB TO RS232 cable + Some plugs
Included the fuse on the case
IP67

KLSH

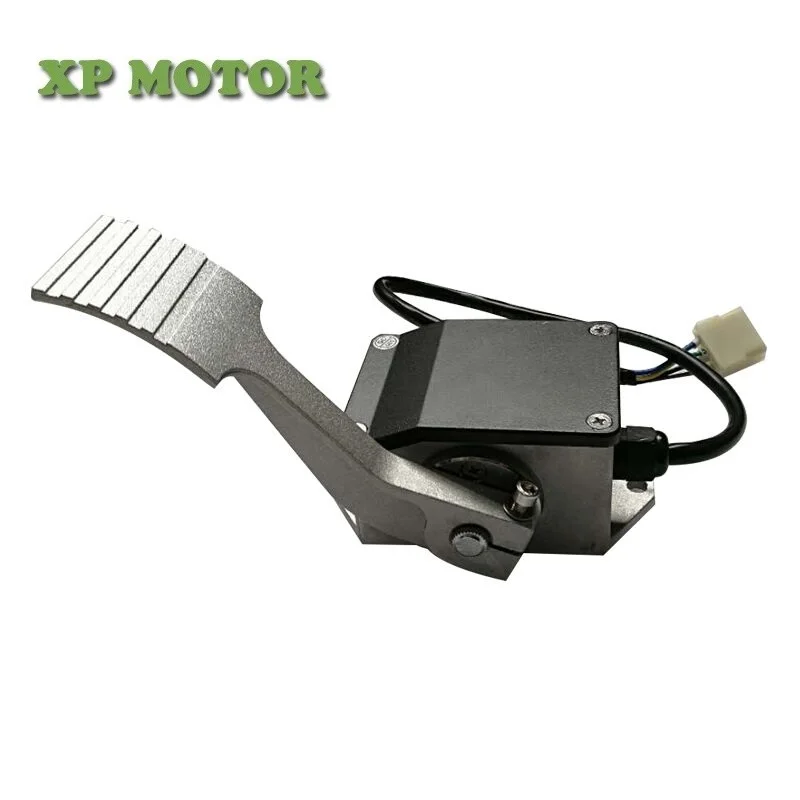

3. 0-5V Electric Car Throttle Pedal



Throttle Pedal Hall type : JKH model (match with our motor & controller)

Input voltage: 5V 12V 15V 24V 36V 48V 60V 72V 84V 96V 120V

Output voltage: 0-5V5-0V1-4.2V4.2-1V0-10V10-0V

Deafult: 5v input voltage (depends on controller design, for our matched controllers, you can choose 5v input voltage), 0-5v output voltage.

QQ20180424140705

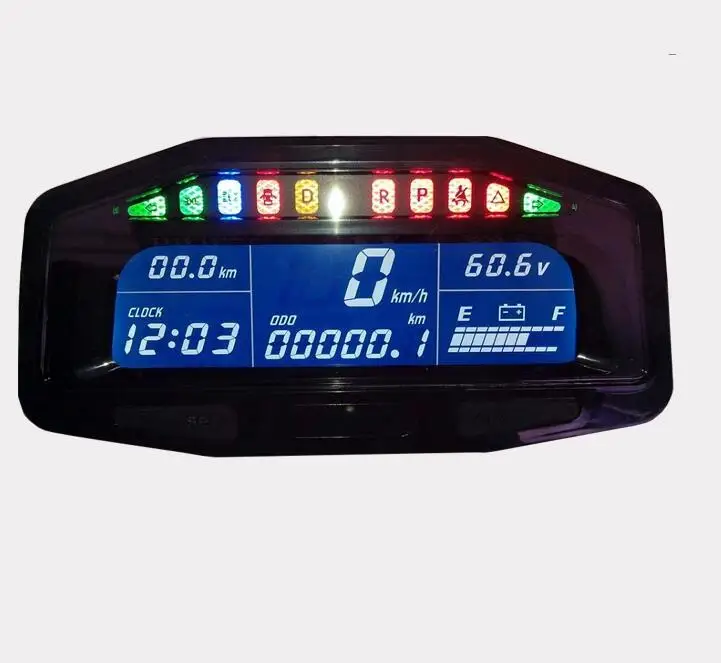

 4. 48-100V Programmable Electric Car Speedometer



Rated Voltage:48V-144V ProgrammableShow Time, driving distance, speed, voltage, electric quantityTest Speed Type: Hall Sensor

 QQ20180604155248

Payment Terms︰Paypal, TT
